Introduction to Computational Complexity and Big-O
References for this lecture
Problem Solving with Algorithms and Data Structures using Python
Sections 3.1-3.4: https://runestone.academy/ns/books/published/pythonds/AlgorithmAnalysis/toctree.html
VSCode debugging demo
Now we’ll look at some debugging features of VSCode using two common errors from previous assignments.
Big Question
Of all the algorithms we could use to solve a given problem, which one should we use?
Things that might go into your analysis:
-
Which one will be easier for me to code?
-
Which one am I more confident will give me the correct results?
-
Which one will run faster?
-
Which one will take less computer memory?
Being able to compare/predict speed and other computing resources is an important part of computer science.
How will my code scale? “This code seems to run ok when I test it on small data sets or with a small number of users. Will it run ok when I deploy it for large data sets and a large number of users?”
Sum of N case study
Problem: We need to write a function that will return the sum of all numbers between 1 and N. That is
\[1+2+3+4+\ldots+N\]Programmer 1 writes a loop and uses an accumulator variable to compute the sum.
#Let's code up this idea in class
def sum_of_n_loop(n):
total = 0
for i in range(n+1):
total += i
return total
print( sum_of_n_loop(3) )
print( sum_of_n_loop(10) )
print( sum_of_n_loop(1000) )
print( sum_of_n_loop(100000) )
print( sum_of_n_loop(10000000) )
6
55
500500
5000050000
50000005000000
Programmer 2 does some research and discovers that there is a mathematical formula for finding the sum of all the numbers up to N.
\[1+2+3+4+\ldots+N = \frac{N(N+1)}{2}\]Programmer 2 bases their algorithm on this forumula.
#Let's code up this idea in class
def sum_of_n_formula(n):
return n*(n+1)/2
print( sum_of_n_loop(3) )
print( sum_of_n_loop(10) )
print( sum_of_n_loop(1000) )
print( sum_of_n_loop(100000) )
print( sum_of_n_loop(10000000) )
6
55
500500
5000050000
50000005000000
Group Activity Problem 1
We are confident that both of these solutions are correct. So, which is better?
Timing your code
One way to analyze running time is to use libraries that calculate time and instrument your code with them.
The time.time() function will tell you the number of seconds on the system clock (technically the number of seconds since some arbitrary time in history like January 1, 1970, 00:00:00 (UTC)).
You can use it like stop-watch like this:
import time
start_time = time.time()
print("Start time:",start_time)
Start time: 1677174692.7210162
end_time = time.time()
print("End time:",end_time)
print("Difference:",(end_time-start_time),"seconds")
End time: 1677174692.724224
Difference: 0.0032079219818115234 seconds
Instrumenting your code
to instrument your code, you could do something like this
start = time.time()
print(sum_of_n_loop(100000000))
end = time.time()
print("That took",end-start,"seconds")
start = time.time()
print(sum_of_n_formula(100000000))
end = time.time()
print("That took",end-start,"seconds")
#print("That took",f"{end-start:.10f}","seconds") #you can do this to format your float values
5000000050000000
That took 2.577965259552002 seconds
5000000050000000.0
That took 2.3126602172851562e-05 seconds
Group Activity Problem 2
Calculate the amount of time each of these functions takes on your computer for the the following values of n. Write down how long it took for each one.
10000000 (ten million)
20000000
30000000
40000000
50000000
Can you predict how long it will take if you run this on 1000000000 (one billion)?

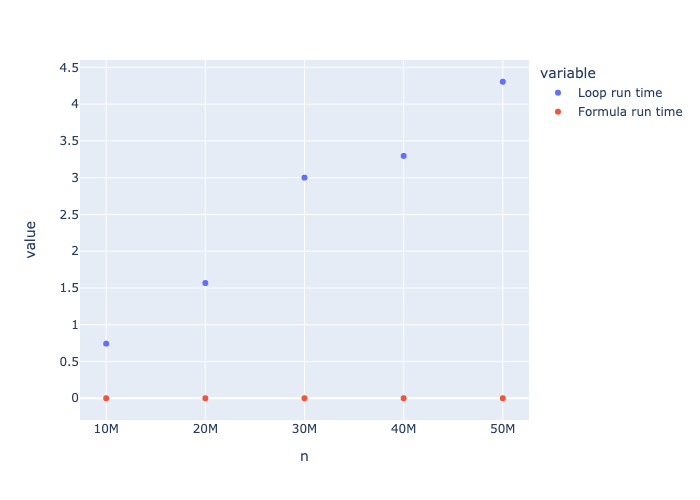

Plotting the results
I suggest plotting the running times. You could use any tool you’re comfortable with - Excel, Google Sheets, etc.
Here’s how you can do it with Plotly using the run times from my computer
import plotly.express as px
timing_results = { "n": [10000000,20000000,30000000,40000000,50000000],
"Loop run time" : [0.7423880100250244, 1.56697416305542, 3.0009987354278564, 3.2959609031677246, 4.3049681186676025],
"Formula run time" : [0.0000040531, 0.0000030994, 0.0000038147, 0.0000038147, 0.0000040531]
}
fig = px.scatter(timing_results,x="n",y=[ "Loop run time","Formula run time"])
fig.show()

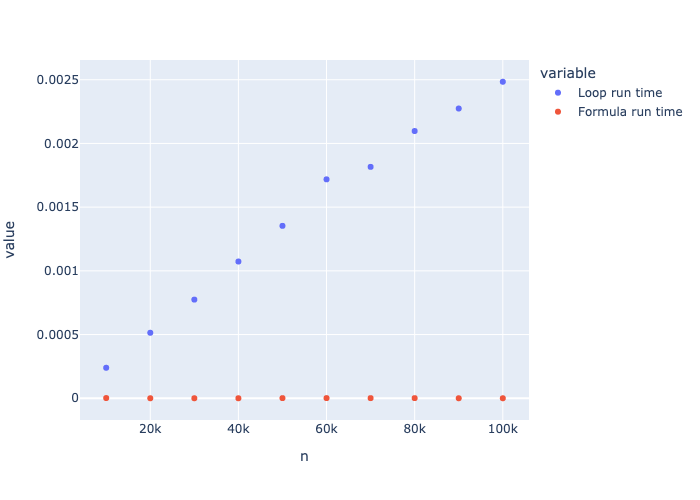

Tangent: We could even automate this…
import plotly.express as px
timing_results = { "n": [10000,20000,30000,40000,50000,60000,70000,80000,90000,100000],
"Loop run time" : [],
"Formula run time" : []
}
for n in timing_results["n"]:
start = time.time()
sum_of_n_loop(n)
end = time.time()
timing_results["Loop run time"].append(end-start)
start = time.time()
sum_of_n_formula(n)
end = time.time()
timing_results["Formula run time"].append(end-start)
fig = px.scatter(timing_results,x="n",y=[ "Loop run time","Formula run time"])
fig.show()
$T(n)$ Time Analysis
Another way we can estimate running time is by counting up the number of basic operations/steps it takes to compute something.
$T(n)$ is the notation we use to describe the amount of time the algorithm takes for a problem of size $n$.
Let’s try to apply this to our Sum of N algorithms.
def sum_of_n_loop(n):
total = 0 # 1 operation
#this loop runs n+1 times
for i in range(n+1): #2 operations (compute the next value in the range, then assign to i)
total += i #2 operations (first add, then assign value to total)
return total
Outside the loop we have 1 operation
Every time through the loop, we have 4 operations
The loop runs $n+1$ times.
So, the total number of operations is $T(n) = 4(n+1)+1$ which after doing a little math is equivlent to $T(n) = 4n+5$
def sum_of_n_formula(n):
return n*(n+1)/2 #3 operations (add, then multiply, then divide)
In this case $T(n)=3$
Since $T(n)=3$ will always be less than $T(n) = 4n+5$, we know the formula version is better.

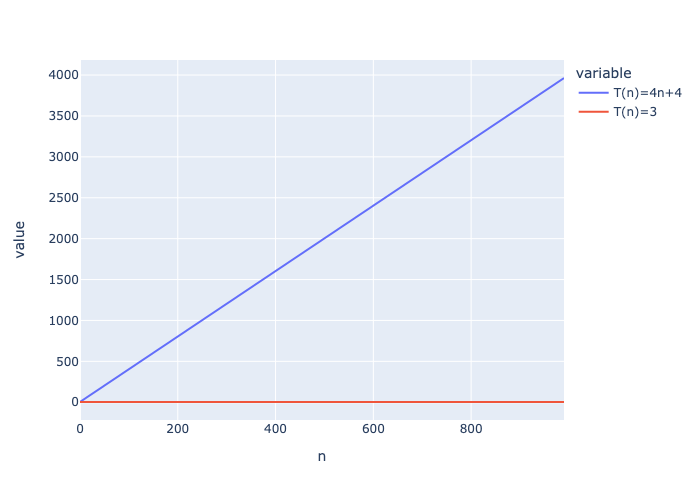

import plotly.express as px
nvals = range(0,1000,10)
t1 = [4*n+4 for n in nvals]
t2 = [3 for n in nvals]
equation_plot = { "n": nvals,
"T(n)=4n+4" : t1,
"T(n)=3" : t2
}
fig = px.line(equation_plot,x="n",y=["T(n)=4n+4","T(n)=3"])
fig.show()
Even if we were comparing
$T(n) = 10000$
to
$T(n) = 4n+5$
We would probably still prefer $T(n) = 10000$ because it has constant growth instead of linear growth.
When the size of the problem gets really big, eventually the linear algorithm will do worse.
The big-sized cases are usually the ones we care most about - what happens to your system when it is under heavier loads?
Group Activity Problem 3
Order these $T(n)$ functions from slowest to fastest growing
$T(n) = 148n+12000$
$T(n) = 54$
$T(n) = 5n^2+33$
$T(n) = 1278540$
$T(n) = 2081n+6$
$T(n) = 23n^2+10n+8$
Big-O: Order of magnitude
When looking at running time like $T(n) = 148n+12000$, the 12000 will be a bigger part of the overall number when $n$ is small, but when $n$ gets big, the $148n$ will dominate the 12000 part.
So, we don’t really care much about the 12000.
Similarly, whene $n$ gets big, the 148 will become a lot less significant.
Conclusion: When looking at $T(n)$, the specific constants are not very important!
Instead, look at $O($ $)$ - the Big-O
$O$ refers to the order of magnitude - it’s like $T(n)$, but you get to ignore all of the constants.
Big-O is the primary way we measure computational complexity.
- can be used for measuring time complexity or space (i.e., memory) complexity
- unless stated otherwise, assume it’s talking about time complexity - describing how the running time of an algorithm grows with larger inputs
All of these functions can be described as $O(n)$, also known as linear because they grow linearly with $n$
-
$T(n) = 148n+12000$
-
$T(n) = 4n+5$
-
$T(n) = 2081n+6$
These functions are all $O(n^2)$ - also known as quadratic
- $T(n) = 0.001n^2$
- $T(n) = 5n^2+33$
- $T(n) = 23n^2+10n+8$
Why doesn’t $T(n) = 23n^2+10n+8$ have $O(n^2+n)$
- again, when $n$ gets big, the $n^2$ term is what dominates
- You only need to include the biggest term.
These functions are all $O(1)$ - also known as constant
- $T(n) = 3$
- $T(n) = 1278540$
- $T(n) = 54$
Determining Big-O
Finding Big-O values is much easier than calculating $T(n)$ because you can ignore all the constants.
Here, we can see we have constant * $n$ + constant number of operations, which is just $O(n)$.
The only thing that depends on the size of the input is the number of times the loop iterates.
def sum_of_n_loop(n):
total = 0 # constant number of things
#this loop runs n + constant number times
for i in range(n+1): #constant number of operations
total += i #constant number of operations
return total
Common Big-O functions
f(n) |
Name |
|---|---|
\(1\) |
Constant |
\(\log n\) |
Logarithmic |
\(n\) |
Linear |
\(n\log n\) |
Log Linear |
\(n^{2}\) |
Quadratic |
\(n^{3}\) |
Cubic |
\(2^{n}\) |
Exponential |
Group Activity Problem 4: Big-O of Searching
Here is an example of the search_for() function that we wrote during the first week of class.
def search_for(item, list_to_search_in):
"""
item: the item you're supposed to search for
list_to_search_in: the list you're supposed to look through to find item
return: True or False depending on if item is contained in list_to_search_in
"""
for curr_item in list_to_search_in:
if item == curr_item:
return True
return False
#let's test it on some examples
print( search_for(42,[35,66,70,5,42,10,12]) )
print( search_for(35,[35,66,70,5,42,10,12]) )
print( search_for(12,[35,66,70,5,42,10,12]) )
print( search_for(9,[35,66,70,5,42,10,12]) )
True
True
True
False
What is the $n$ in this algorithm? That is, what tells you the “size” of the input?
What is the Big-O of this algorithm?
Are the number of steps different for the different test cases?
What is the Big-O of the algorithm below?
def search_for_alternate(item, list_to_search_in):
"""
item: the item you're supposed to search for
list_to_search_in: the list you're supposed to look through to find item
return: True or False depending on if item is contained in list_to_search_in
"""
return (item in list_to_search_in)
#let's test it on some examples
print( search_for_alternate(42,[35,66,70,5,42,10,12]) )
print( search_for_alternate(35,[35,66,70,5,42,10,12]) )
print( search_for_alternate(12,[35,66,70,5,42,10,12]) )
print( search_for_alternate(9,[35,66,70,5,42,10,12]) )
True
True
True
False
Best, Average, and Worst Case
Different inputs (of the same size) to the same algorithm might result in different running times
Best case performance: running time on the input that allows the algorithm to finish the fastest
Worst case performance: running time on the input that requires the most time for the algorithm to finish
Average case performance: average running time over typical inputs
- often it is difficult to determine what the typical inputs are that should be considered
Unless otherwise stated, Big-O is assumed to be talking about worst case performance.
What are the best, worst, and average cases for search_for()?
Group Activity Problem 5: Anagram Detection
An anagram is a word or phrase that can be formed by rearranging the letters of a different word or phrase.
Examples of anagrams include
silent, listen
night, thing
the morse code, here come dots
eleven plus two, twelve plus one
Problem: Write a function that will tell you if two strings are anagrams.
The book provides four different solutions in Section 3.4. Three of them are reproduced below.
Each group will be assigned one of these solutions. Do the following as a group.
- Test the code on several inputs of different sizes.
- Instrument the code to measure the time it takes on different-sized inputs.
- Give examples of best, worst, and average case inputs.
- Determine what the Big-O of the algorithm is, and be ready to explain why.
If you have time, you can check out what it says in the book, but try to analyze it without looking first!
Solution 1: Checking off
This code works by converting the second string into a list and then search through the list for each character from the first string and replacing it with None when found.
For example, if given "silent" and "listen", the list would start out as
['l','i','s','t','e','n']
when searching for 's', it becomes ['l','i',None,'t','e','n']
when searching for 'i', it becomes ['l',None,None,'t','e','n']
… and so until the list becomes [None,None,None,None,None,None]
def anagramSolution1(s1,s2):
stillOK = True
if len(s1) != len(s2):
stillOK = False
alist = list(s2)
pos1 = 0
while pos1 < len(s1) and stillOK:
pos2 = 0
found = False
while pos2 < len(alist) and not found:
if s1[pos1] == alist[pos2]:
found = True
else:
pos2 = pos2 + 1
if found:
alist[pos2] = None
else:
stillOK = False
pos1 = pos1 + 1
#uncomment this if you want to see what the list looks like at each step
#print(alist)
return stillOK
print(anagramSolution1('silent','listen'))
True
Solution 2: Sort and Compare
This solution starts by converting both strings to lists and then sorting them. Once in sorted order, it goes through and checks that each corresponding item in the list is the same.
For example, if given "silent" and "listen", it would turn them into lists ['s', 'i', 'l', 'e', 'n', 't'] and ['l', 'i', 's', 't', 'e', 'n'].
Then, after sorting each list, we get ['e', 'i', 'l', 'n', 's', 't'] and ['e', 'i', 'l', 'n', 's', 't'].
We then compare e to e, then i to i, then l to l and so on. If we ever find two that don’t match, we know it isn’t an anagram. If we get to the end and they all match, it is an anagram.
def anagramSolution2(s1,s2):
alist1 = list(s1)
alist2 = list(s2)
alist1.sort()
alist2.sort()
#uncomment these if you want to see the sorted lists
#print(alist1)
#print(alist2)
pos = 0
matches = True
while pos < len(s1) and matches:
if alist1[pos]==alist2[pos]:
pos = pos + 1
else:
matches = False
return matches
print(anagramSolution2('silent','listen'))
True
Solution 4: Count and Compare
This solution creates a list of letter frequencies for each string. Since there aree 26 letters in the alphabet, the strings will each have 26 entries - the first entry is the number of occurrences of 'a', the secondd is the number of occurrences of 'b', and so on.
We can then loop through these frequency lists and compare them item by item to see if they’re the same.
For example, given inputs 'elevenplustwo' and 'twelveplusone', you end up with the frequency lists
[0, 0, 0, 0, 3, 0, 0, 0, 0, 0, 0, 2, 0, 1, 1, 1, 0, 0, 1, 1, 1, 1, 1, 0, 0, 0]
and
[0, 0, 0, 0, 3, 0, 0, 0, 0, 0, 0, 2, 0, 1, 1, 1, 0, 0, 1, 1, 1, 1, 1, 0, 0, 0]
looping through this list entry by entry will show that they are the same.
On the other hand, if given inputs 'granma' and 'anagram', you’d get the frequency lists
[2, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0]
[3, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0]
And you can determine they are not anagrams, because the first list has a 2 in the a position while the second one has a 3.
def anagramSolution4(s1,s2):
c1 = [0]*26
c2 = [0]*26
for i in range(len(s1)):
pos = ord(s1[i])-ord('a')
c1[pos] = c1[pos] + 1
for i in range(len(s2)):
pos = ord(s2[i])-ord('a')
c2[pos] = c2[pos] + 1
#uncomment these if you want to see the word frequency lists
#print(c1)
#print(c2)
j = 0
stillOK = True
while j<26 and stillOK:
if c1[j]==c2[j]:
j = j + 1
else:
stillOK = False
return stillOK
print(anagramSolution4('elevenplustwo','twelveplusone'))
True
#ignore this cell - it's just so I can export the images for the web page
import plotly.io as pio
pio.renderers.default = "png"
