# Sequential Logic

---

CS 130 // 2022-10-13

# Sequential Logic

## Combinational VS Sequential

- A **combinational circuit** is:
    + Relies solely on the input to resolve its output
    + Stateless / memoryless / doesn't depend on previous states

---

- A **sequential circuit** is:
    + Relies on input *and* current state to resolve its output
    + Has memory

## S-R Latch
<div class="twocolumn">

<div>

- A "set reset" latch is implemented with
    <img src='/~manley/CS130/Fall2022/assets/images/COD/sr-latch.png' alt="S-R latch diagram" />
- Let's fill in the truth table together

</div>

<table>
  <tbody>
    <tr><th>$S$</th><th>$R$</th><th>$Q$</th><th>$\overline{Q}$</th><th>$Q_\text{next}$</th><th>$\overline{Q}_\text{next}$</th></tr>
    <tr> <td>0</td> <td>0</td> <td>0</td><td>1</td><td></td><td></td></tr>
    <tr> <td>0</td> <td>0</td> <td>1</td><td>0</td><td></td><td></td></tr>
    <tr> <td>1</td> <td>0</td> <td>0</td><td>1</td><td></td><td></td></tr>
    <tr> <td>1</td> <td>0</td> <td>1</td><td>0</td><td></td><td></td></tr>
    <tr> <td>0</td> <td>1</td> <td>0</td><td>1</td><td></td><td></td></tr>
    <tr> <td>0</td> <td>1</td> <td>1</td><td>0</td><td></td><td></td></tr>
  </tbody>
</table>

</div>
</div>

## D Latch
<div class="twocolumn">

<div>

- A "data" latch is implemented with
    <img src='/~manley/CS130/Fall2022/assets/images/COD/d-latch.png' alt="D latch diagram" />
- Let's fill in the truth table together

</div>

</div>
</div>

## Clocks

- Latches are controlled by clocks that regularly trigger

![D latch](../../assets/images/COD/d-latch.png)

</div>
<div>

![D latch clocking diagram](../../assets/images/COD/latch_clock_diagram.png)

</div>
</div>

## Exercise

- Experiment with these in Logisim
- How can you get it to store a 1 in the latch?
- How can you get it to store a 0 in the latch?

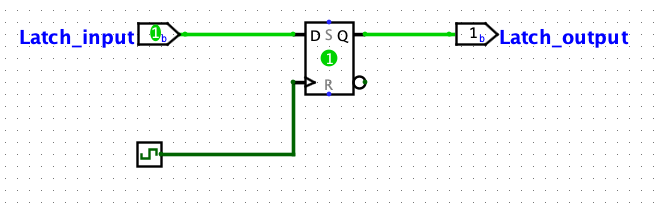

![latch with clock](../../assets/images/latch_with_clock.png)

</div>
<div>

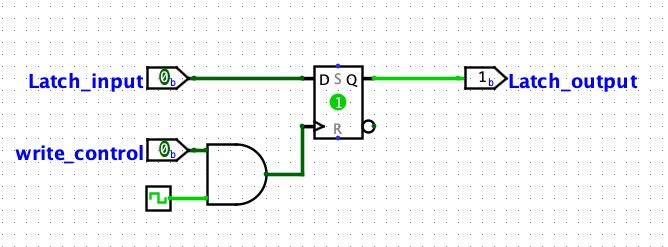

![write-controlled latch](../../assets/images/write_controlled_latch.png)

</div>
</div>

## D Flip Flop

- A (falling edge-triggered) **D flip flop** can be implemented with two D latches in series
- This configuration creates a **delay** so that the output is only changed on the **falling edge** of the clock

- a rising edge-triggered flip flop can be constructed similarly

</div>

## Registers
- A **register** is a multi-bit memory component
- Registers are commonly implemented with an array of D flip flops

## Register Files

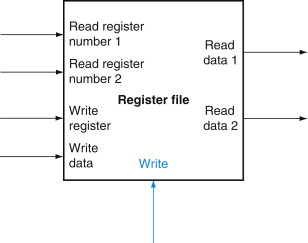

- A **register file** consists of an array of registers that can be read and written to

![Register File Diagram](/~manley/CS130/Fall2022/assets/images/COD/register-file.png)

## Register Files

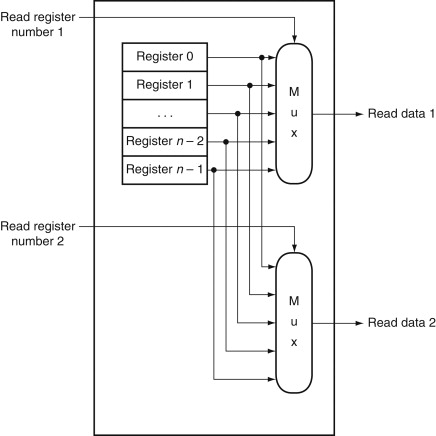

- **Reading** is implemented with multiplexers

![Register File Diagram](/~manley/CS130/Fall2022/assets/images/COD/register-file-reading.png)

## Register Files

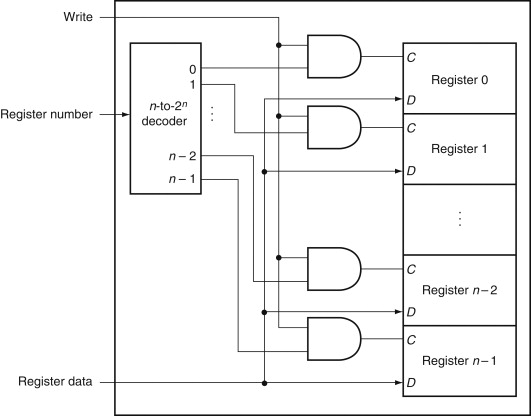

- **Writing** is implemented with a decoder

![Register File Diagram](/~manley/CS130/Fall2022/assets/images/COD/register-file-writing.png)

## Decoder
- A **decoder** is another common circuit that has $n$ inputs and $2^n$ outputs
-
 Only one output is a 1 at any given time (one for each possible combination of inputs)
-
 If the input encodes the number 7, then the output bit for 7 is asserted and all others are zeros

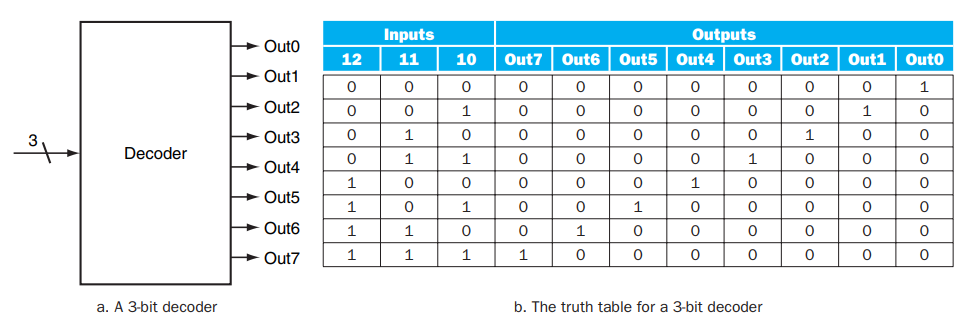

## Decoder Truth Table

- Below is a 3-bit decoder truth table

![Decoder Truth Table](../../assets/images/COD/decoder.png)

## Exercise: Build a register File in Logisim

- 32 bits
- at least 4 registers

![Register File Diagram](/~manley/CS130/Fall2022/assets/images/COD/register-file.png)

</div>
<div>

![Register File Diagram](/~manley/CS130/Fall2022/assets/images/COD/register-file-reading.png)
![Register File Diagram](/~manley/CS130/Fall2022/assets/images/COD/register-file-writing.png)

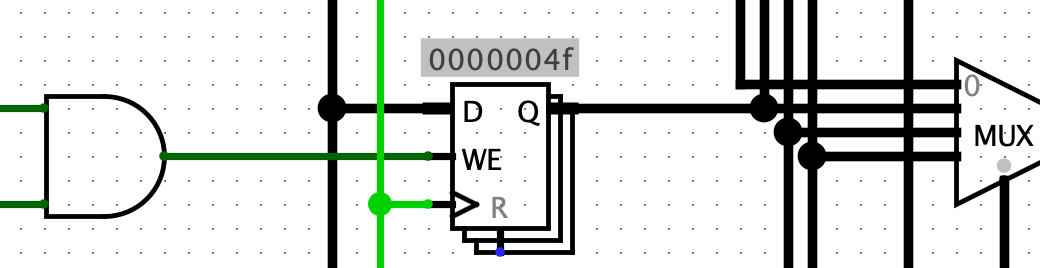

![register file glimpse](../../assets/images/register_file_glimpse.png)

</div>
</div>
