# Non-Leaf Procedures and The Stack

---

CS 130 // 2022-09-22

# Review

### Calling Our Leaf Procedure

```python
def func(x,y):
    return x + y

def main():
    func(1, 2)
```

---

```mips
func:
    add $v0, $a0, $a1
    jr $ra

main:
    li  $a0, 1
    li  $a1, 2
    jal func
```

### Procedure Calls

```python
def main():
    func(1, func(2, func(3, 4)))
```

---

```mips
main:
   li  $a0, 3
   li  $a1, 4
   jal func

li   $a0, 2
   move $a1, $v0
   jal  func

li   $a0, 1
   move $a1, $v0
   jal  func
```

## Calling a Procedure
1. Put parameters in appropriate registers
    +
 `$a0`, `$a1`, `$a2`, `$a3`
2.
 Transfer control to the procedure: *jump and link*
    +
 `jal ProcedureLabel`
		- puts the current instruction's address into `$ra`
3.
 Perform task
4.
 Place result in a location the callee can find
    +
 `$v0`, `$v1`
5.
 Return control to the caller: *jump to addr. in register*
    +
 `jr $ra`

## Non-Leaf Procedures
- Life would be easy if all procedures were "leaves"
- In reality, a procedure might call another procedure which may call another procedure ...
	- could even be *recursive*
-
 We need a way to preserve the state of each partially completed call so that they all return properly

# Stack

## Stack
- MIPS provides a register `$sp` that stores a memory address
-
 Addresses **above** `$sp` is memory that is already being used by other parts of the program
-
 Addresses **below** `$sp` is free memory

## Stack
- The **called** procedure is responsible for restoring any saved registers `$s0`, ..., `$s7` as well as the stack pointer `$sp` register before returning
-
 Any other register may be used without restoration, so the **calling** procedure is responsible for saving any data before making the call

## Memory Structure

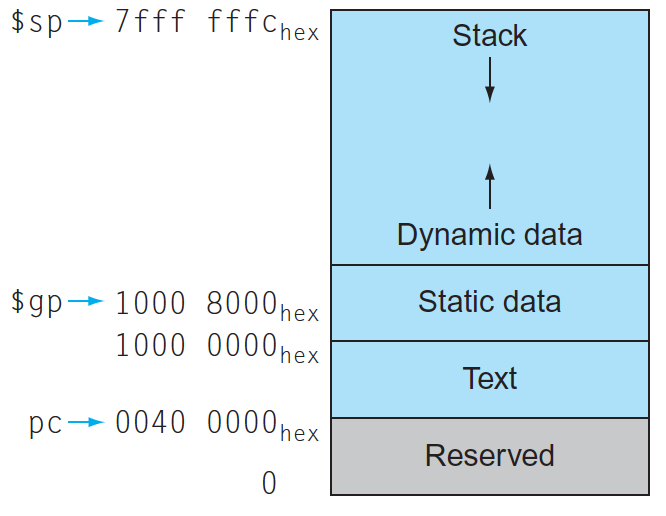

![MIPS memory structure](/~manley/CS130/Fall2022/assets/images/COD/mips-memory.png)

## Stack Frames

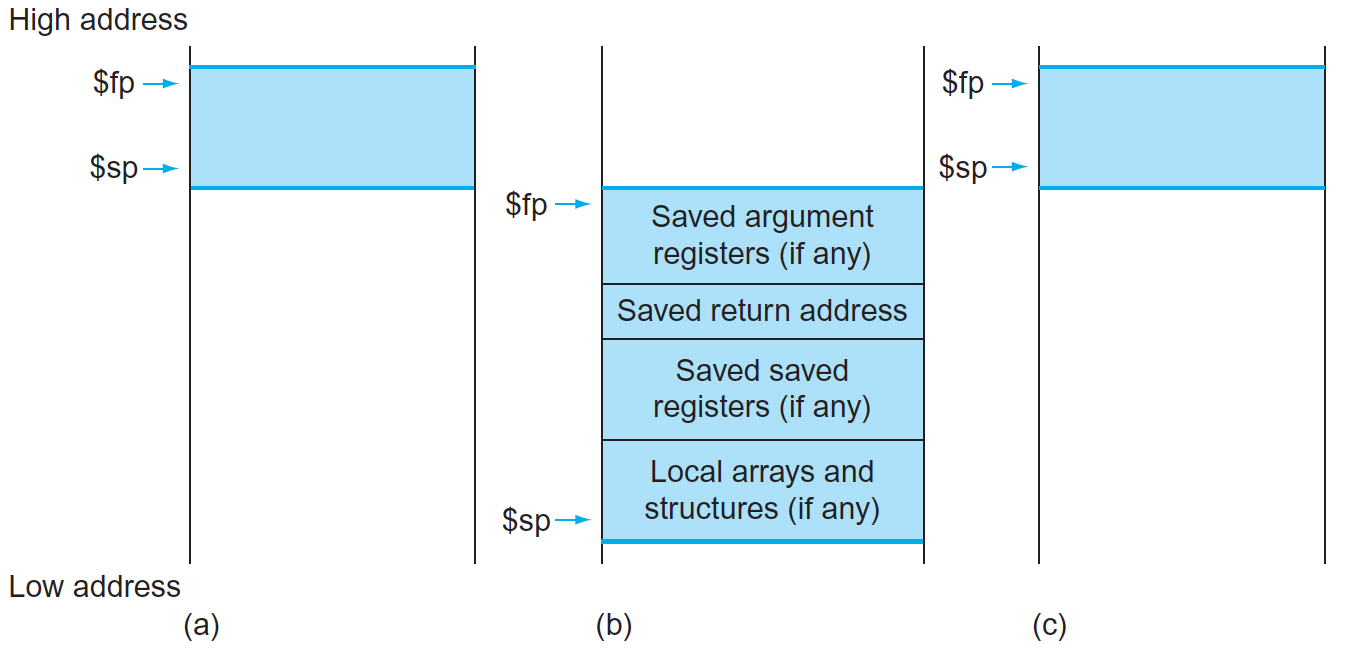

![Procedure frame](/~manley/CS130/Fall2022/assets/images/COD/stack-frame.png)

## Exercise
- Convert the following Python code into MIPS

```python
def compute(e):
    return e + e

def calc(c):
    d = compute(7)
    return c + d

def main():
    a = 5
    b = calc(a)
```

## Exercise Solution: Compute

```python
def compute(e):
    return e + e
```

```mips
compute: add $v0, $a0, $a0    # returns e + e
         jr $ra
```

## Exercise Solution: Calc - Take 1

```python
def calc(c):
    d = compute(7)
    return c + d
```

```mips
calc: li  $a0, 7          # puts 7 in a0
      jal compute         # calls compute(7)
      add $v0, $v0, $a0   # adds argument to result
      jr  $ra
```

-
 Unfortunately this will fail. Why?
    +
 Both `$a0` and `$ra` will be erased!

## Exercise Solution: Calc - Take 2

```python
def calc(c):
    d = compute(7)
    return c + d
```

```mips
calc: addi $sp, $sp, -8    # allocates space
      sw   $a0, 0($sp)     # stores c on the stack
      sw   $ra, 4($sp)     # stores $ra on the stack
      li   $a0, 7          # puts 7 in a0
      jal  compute         # calls compute(7)
      lw   $ra, 4($sp)     # restores $ra
      lw   $a0, 0($sp)     # restores argument
      addi $sp, $sp, 8     # deallocates space
      add  $v0, $v0, $a0   # adds argument to result
      jr   $ra
```

## Exercise: Main

```python
def main():
    a = 5
    b = calc(a)
```

```mips
main:    li   $s0, 5          # a = 5
         move $a0, $s0        # loads a into argument
         jal  calc            # calls calc(5)
         move $s1, $v0        # b = result
```

## Assignment

- [Assignment 4](../../assignments/assignment-4/)
  - Translate a Python program that has functions and Arrays
  - 8 points
  - Part of it has been done - you'll do a "middle" function.
